Project Title
Installation of 1km long 48″ Internal and External FBE Coated Pipeline for Potable Water Network in Bridge 1 and Bridge 2 Between Reem Island and Umm Al Lafina
Type of Contract
Pipeline Installation
Year of Execution
2020-2021
System
- Pipeline Installation (CS and GRP)

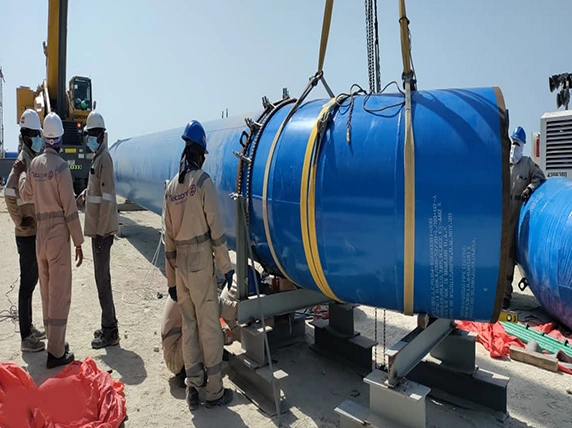

- Internal and External FBE Coating on Field Joints

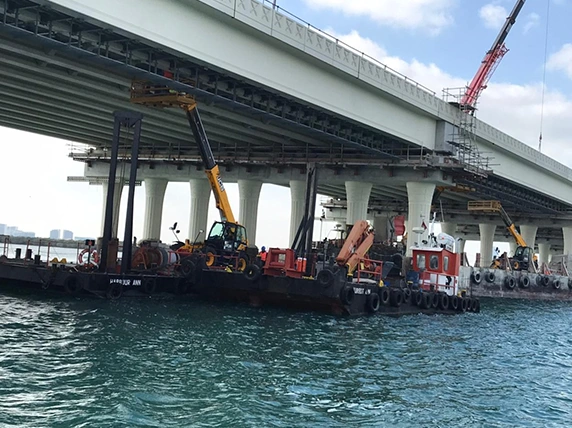

- Installation through Bridge Girder

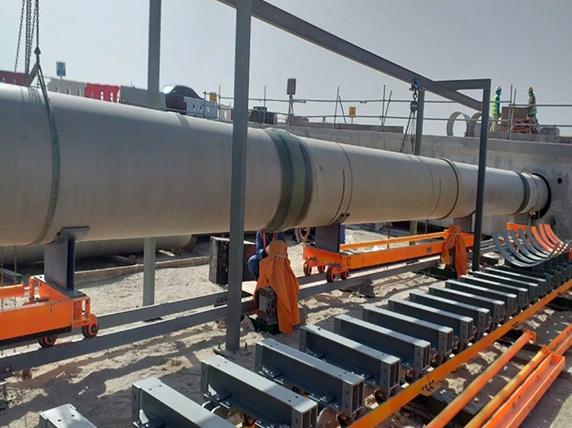

- Customized installation using in- house developed motorized rack and pinion pushing arrangement
- Specially designed Permanent Saddle Support with roller wheel
- Hydrotest for the pipeline
Mechanical Works

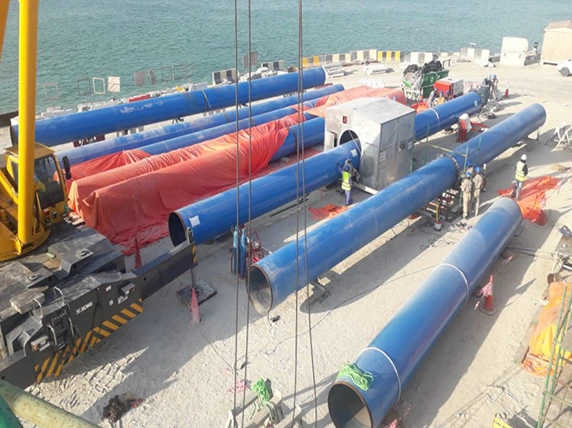

- Fabrication, Installation, Testing, and Commissioning of 1km long 48″ (1.2m) Dia Internal and External FBE coated Carbon Steel Pipeline for Potable water network.
- Fabrication, Installation, Testing and Commissioning of 1km long GRP
Pipeline as per below- DN 900 – ADDC Water Line
- DN 900 – Storm Water Line
- DN 300 – Sewerage Water Line
Electrical & Instrumentation
N/A
Structural Works
Custom-designed, TRANSCO-approved rigging system comprising Rack & Pinion, motor, rail arrangement, working platform, temporary saddle support etc. for the installation/pushing of the pipeline through the bridge girder and GRP diaphragm.
Approvals Obtained
TRANSCO/ADDC/MUSANADA/ADWEA
Shutdown
N/A
